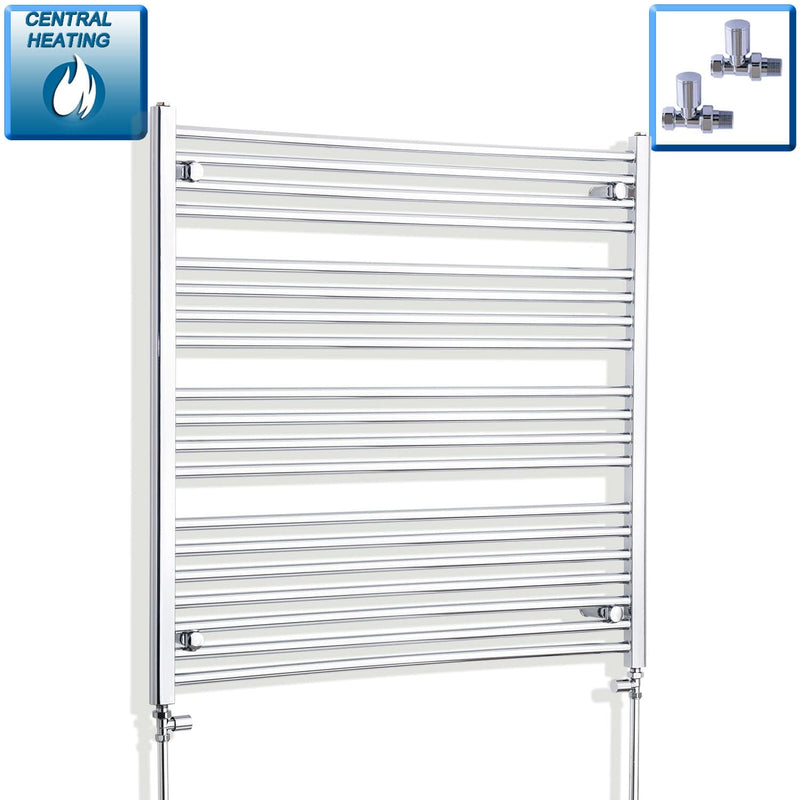

Straight inline Floor pipes
Choose this when pipework comes straight up out of the floor directly below the rail inlets.
Sale

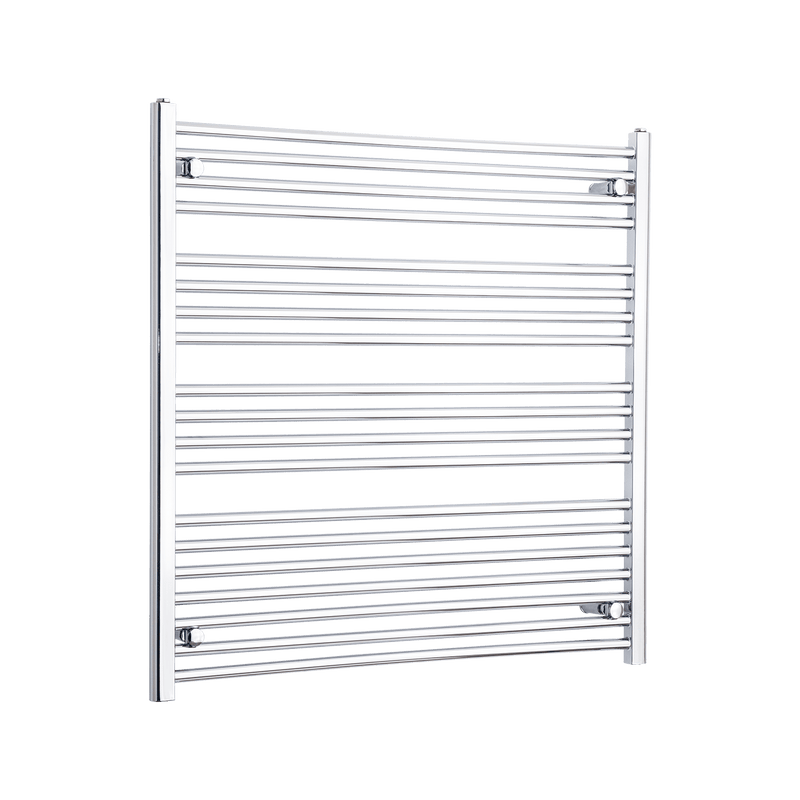

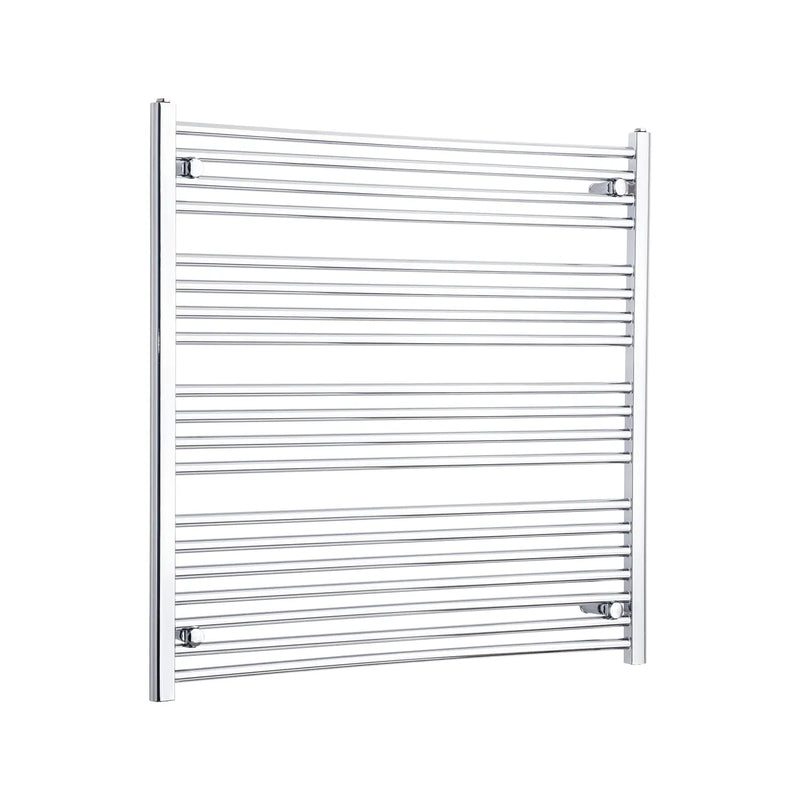

1000x1000mm Heated Straight Towel Rail Radiator Chrome
1562
BTU
458W
Watts
1000mm
Height
1000mm
Width
£170.95
£190.95
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
30-day returns
Frequently Bought Together
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year warranty
1000mm wide, 1000mm high — the square-format statement piece
Product Overview & Heating Capacity
1000mm wide, 1000mm tall — 19 bars deliver 1,562 BTU at ΔT50. A square-format rail that commands the wall and heats large family bathrooms as the primary source. The equal width and height creates a striking balanced presence. Chrome-plated mild steel, BS EN 442 tested.
1,562
BTU at ΔT50
458 W
Heat output
19
Tubes (4+4+4+7 layout)
5 yr
Warranty, no quibbles
Will This Towel Rail Fit My Bathroom?
Enter your room dimensions below — the calculator will tell you whether this rail is a good fit, tight, or whether you should consider a larger size.
✓ Tight fit. Your room needs ~1420 BTU. This rail delivers 1562 BTU — adequate, but consider supplementary heating.
Choose your fuel type
This listing is the central-heating version. Same design, three ways to power it — make sure you're on the right page for your setup.
Central heating You're here
Connects to your boiler via valves. Heats whenever your central heating is on.
Electric only Independent
Pre-filled and ready to plug in. Run independently of your boiler — ideal for rooms without existing pipework.
Dual fuel Best of both
Central heating in winter, electric in summer. Warm towels year-round without running your boiler.
Technical Specifications & Dimensions
Fit-check before you buy
| Manufacturer ID | FC-100-100 |
| Height | 1000mm |
| Width | 1000mm |
| Projection from wall | 90–110mm |

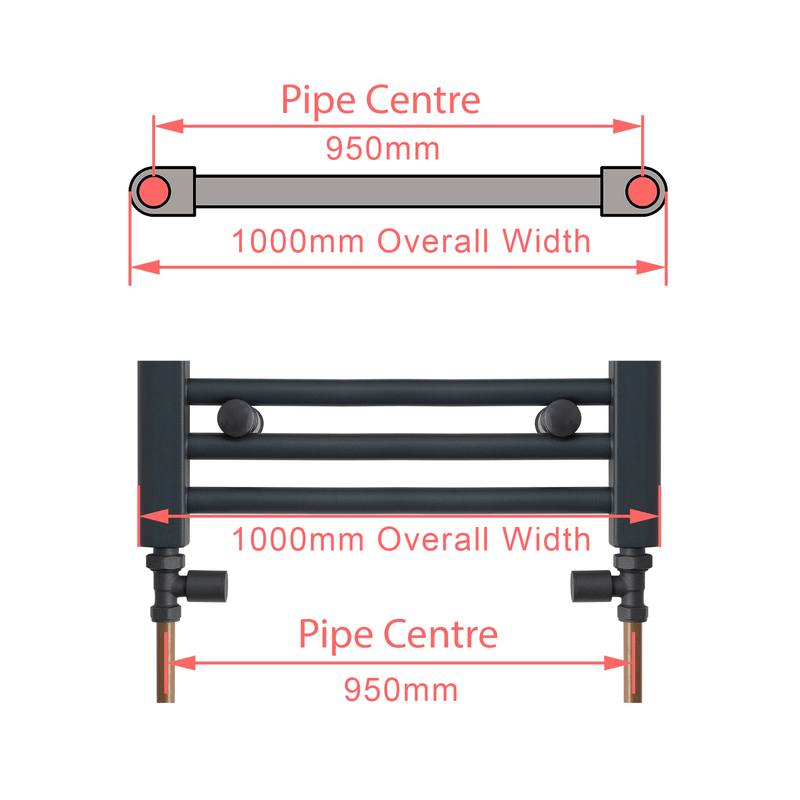

| Pipe centres | 950mm |
| Heat output (ΔT30) | 778 BTU · 228W |
| Heat output (ΔT50) | 1,562 BTU · 458W |
| Heat output (ΔT60) | 1,974 BTU · 579W |

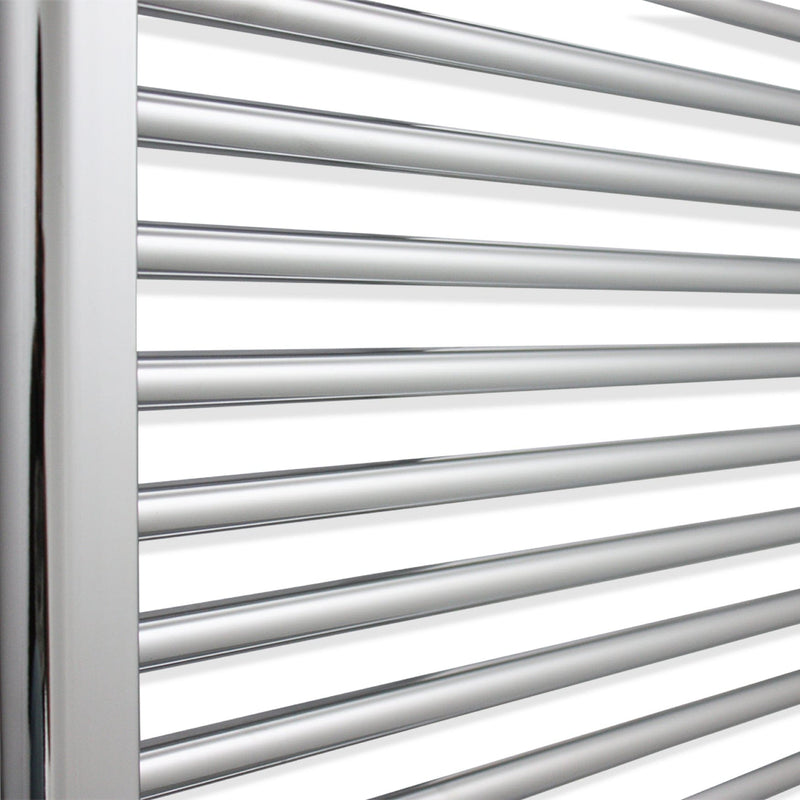

| Tube layout | 4+4+4+7 (19 tubes total) |
| Tube diameter | 22mm |
| Model | Straight / Flat |
| Material | Mild steel |
| Finish | Chrome plating |

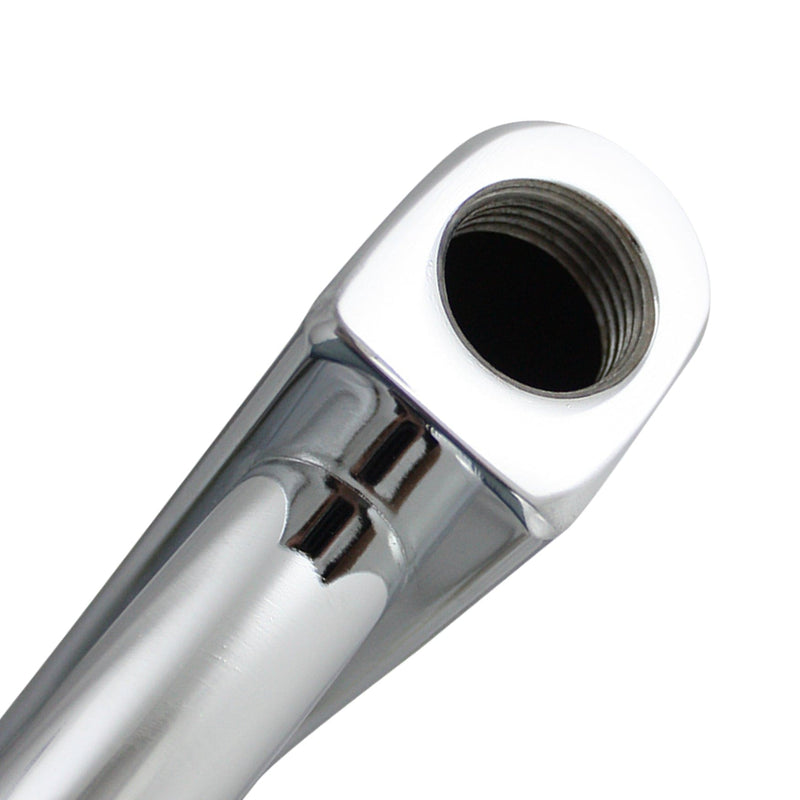

| Valve connection | ½" BSP |
| Dual-fuel ready | ✓Yes (with element) |
| Electric-only ready | ✓Yes (with element) |
| Standard | BS EN 442 |

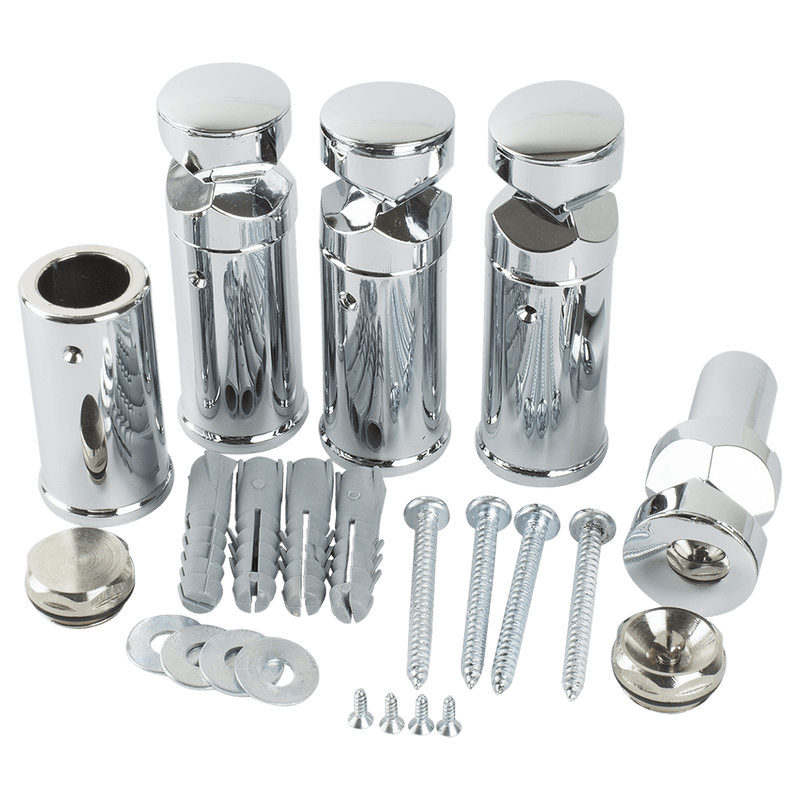

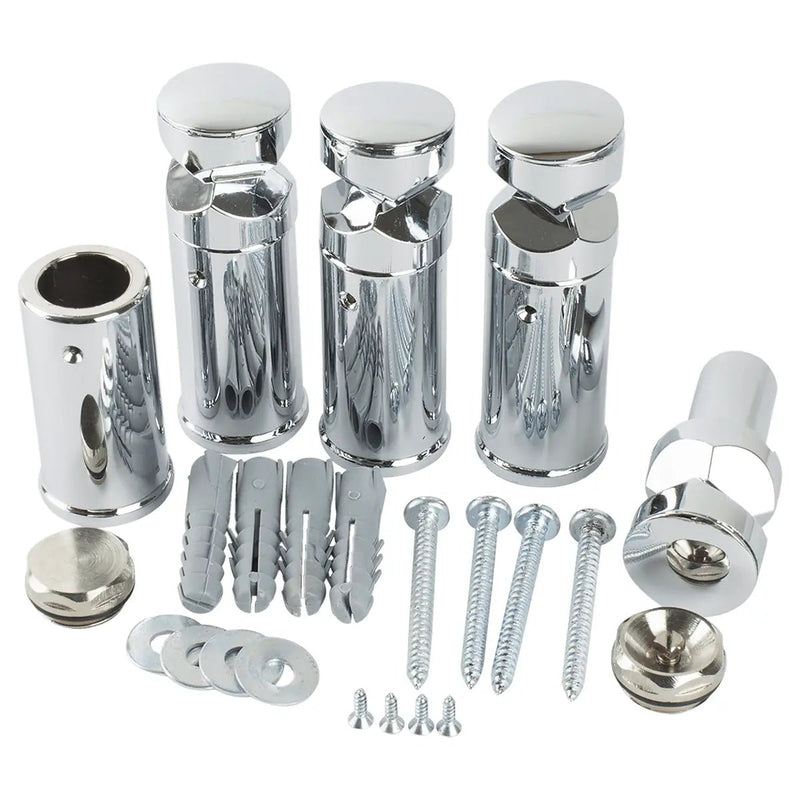

| In the box | 4× adjustable chrome brackets, screws, rawl plugs, washers, blanking & bleed plug |
| Warranty | 5 years |
Need help measuring? BTU calculator ↗

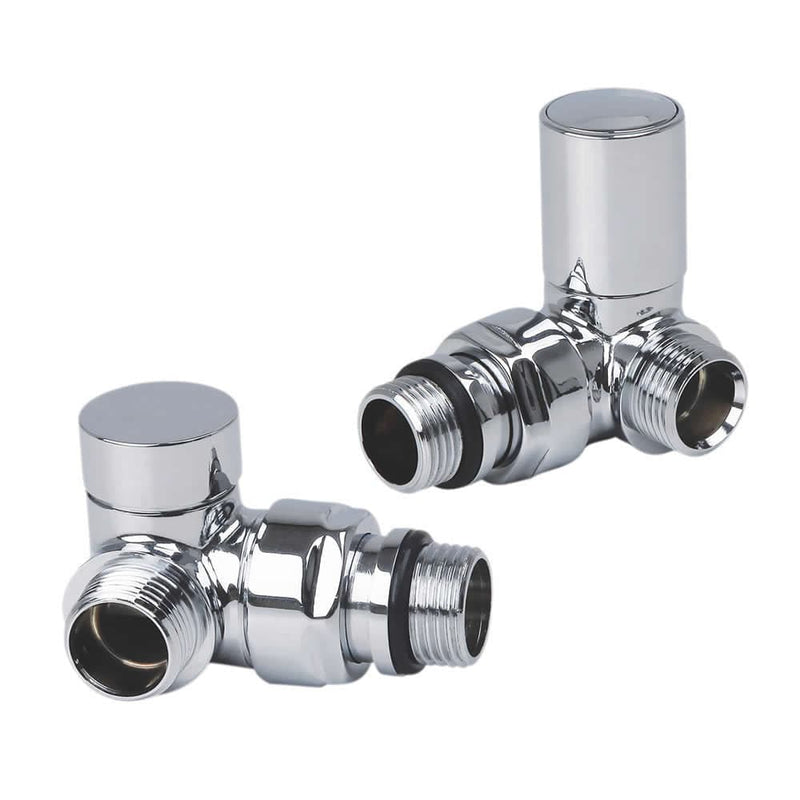

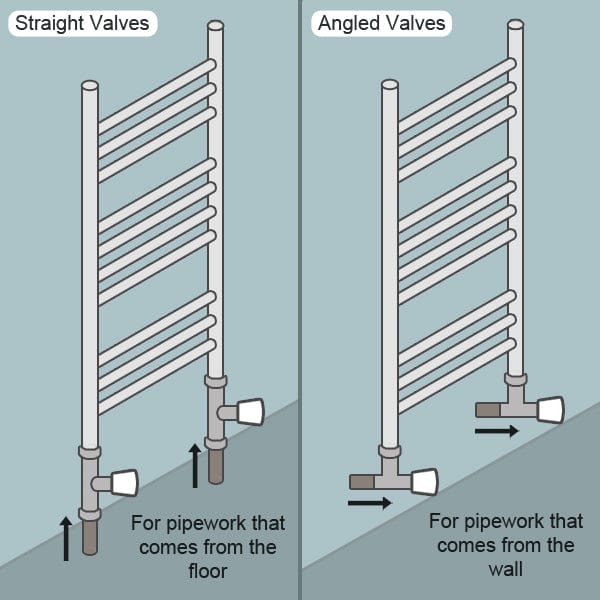

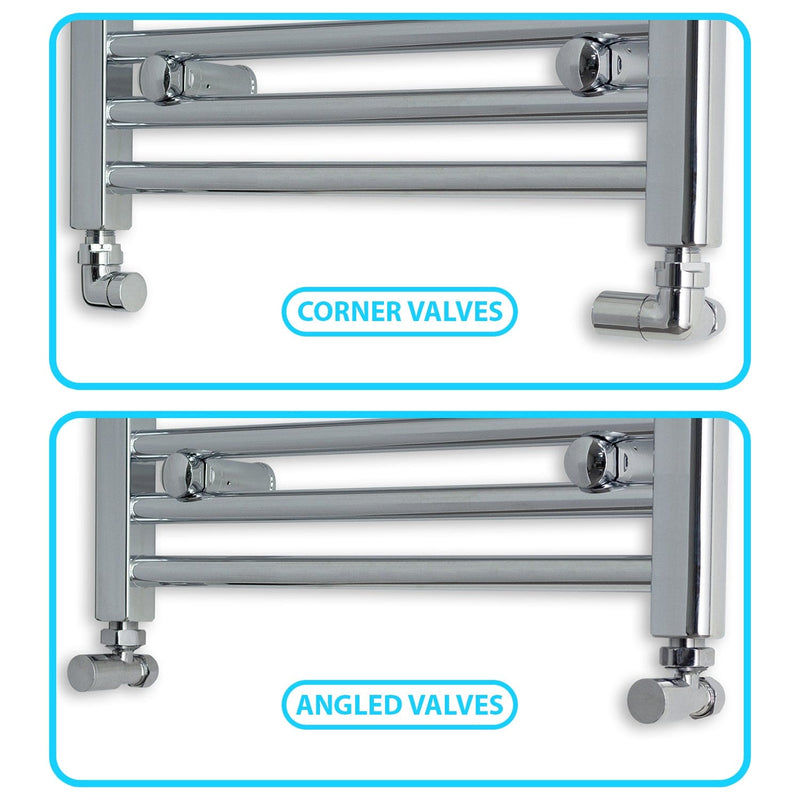

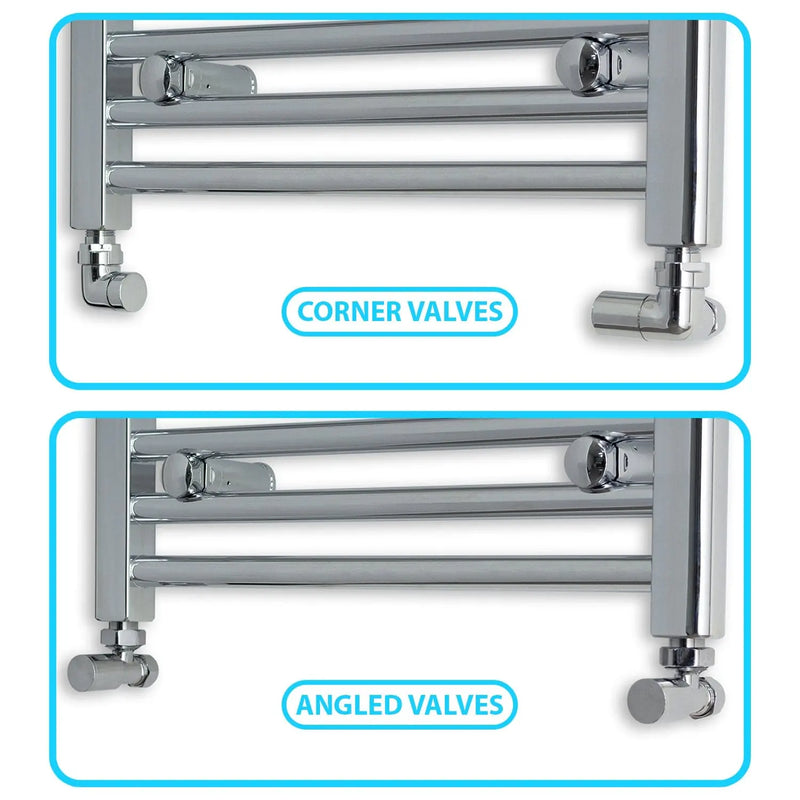

Choosing Your Valve Type
Three valve types — which one you need depends on where your pipes come out.

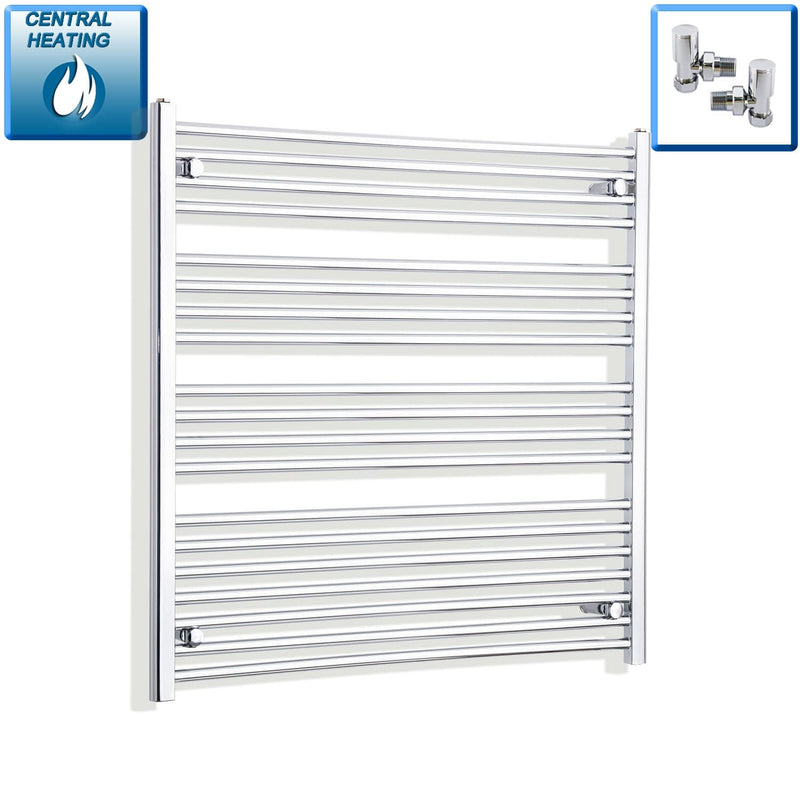

Angled Wall pipes
For pipes that exit horizontally from the wall. The valve turns 90° upward into the rail.
Corner Wall pipes
A tighter alternative for wall pipes — sits flush to the wall for a cleaner, lower-profile finish.
TRV valves are not suitable for towel rails — fitting one could leave your towels damp and smelling. Find out why ↗
Not sure which? Browse our valves ↗
Complete the look
Frequently bought together with this rail.
Frequently Asked Questions
Q.
Can this towel rail be used as electric-only or dual-fuel?
A. Yes — with the addition of a heating element, this rail converts to electric-only or dual-fuel running. We pre-fill electric rails with a minimum 85% reverse-osmosis water and inhibitor mixture (ethylene glycol), leaving an air gap for expansion. The element installs at the bottom (left or right) — heat rises, so top-mounted elements won't work properly.
Q.
Will this heat my bathroom on its own?
A. At 1,562 BTU / 458W this rail is sized for compact spaces — downstairs WCs, cloakrooms, and small en-suites. For a typical 1.2m × 1.0m WC you need roughly 160 BTU, so this rail has comfortable headroom there. For a standard bathroom (2.4m × 2m+), consider a taller or wider rail.
Q.
What are the pipe centre and projection measurements?
A. Pipe centres are 950mm. The brackets are adjustable: total projection from the wall is 90–110mm. That gives you flexibility if your pipes don't align perfectly with the rail inlets. Most angled valves give a further ±15mm of horizontal play, so pipe centres between 935–965mm are within tolerance.
Q.
Is the chrome finish on this towel rail rust-resistant?
A. Yes — the chrome is electroplated over high-quality mild steel and lacquer-sealed to resist corrosion in normal bathroom conditions. The rail carries a 5-year warranty.
Q.
Does it come with fixings?
A. Yes — the rail ships with 4× adjustable chrome brackets, screws, rawl plugs and washers, plus a blanking plug and a bleed plug. Valves are sold separately so you can choose straight or angled to match your pipework.
