Reina Designer Neva Vertical Steel Radiator
Reina Designer Neva Vertical Steel Central Heating Radiator

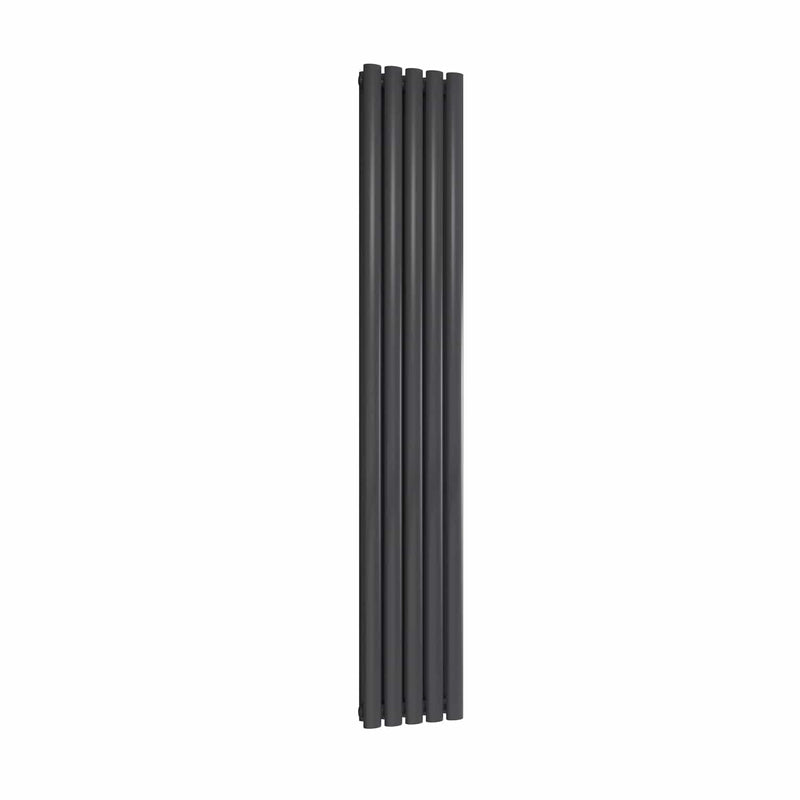

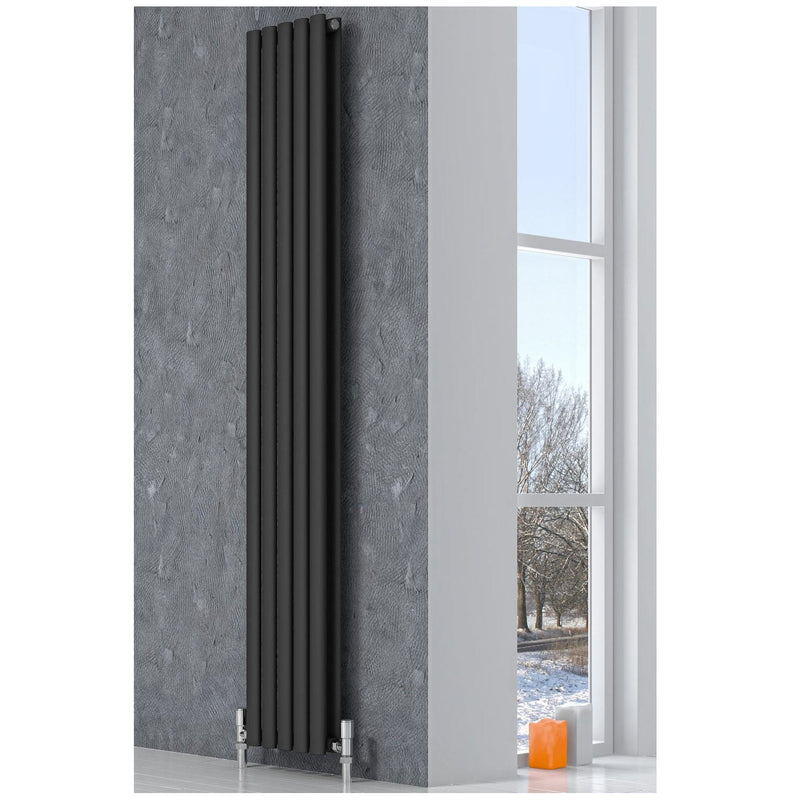

The Reina Neva Anthracite Vertical Designer Radiators are made using superior quality steel and is built to last long and comes with an impressive heat output to quickly warm up the entire room. Anthracite Vertical Radiators are very versatile and don't take up much real estate on the wall, allowing them to fit into small spaces while providing the warmth you need. The tubes are oval in shape and are powder coated to deliver an exquisite contemporary appeal. This equipment comes supplied with brackets necessary to wall-mount it.
Anthracite and White finish available
Plain and simple, the Neva range is staple of Reina's radiator catalogue
- 5 year guarantee
- Please note that the Black and White colours are a gloss finish
- This is the doubled configuration of the Neva which features a second set of identical piping behind the first, but it is also available in a singled configuration with only one set for a variety of heat outputs
- Neva Vertical Radiators can be rotated through 90° to be mounted horizontally, please ask sales either by telephone or through the contact us page for the horizontal mounting bracket kit
- In addition Neva Radiators also come in a horizontal range.
Installation Manual Download Link

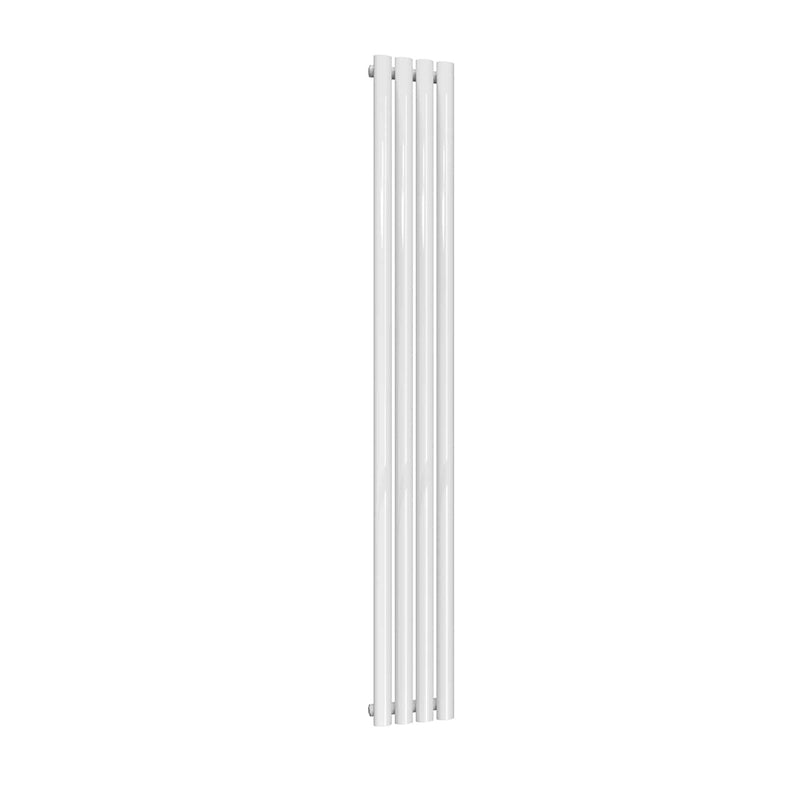

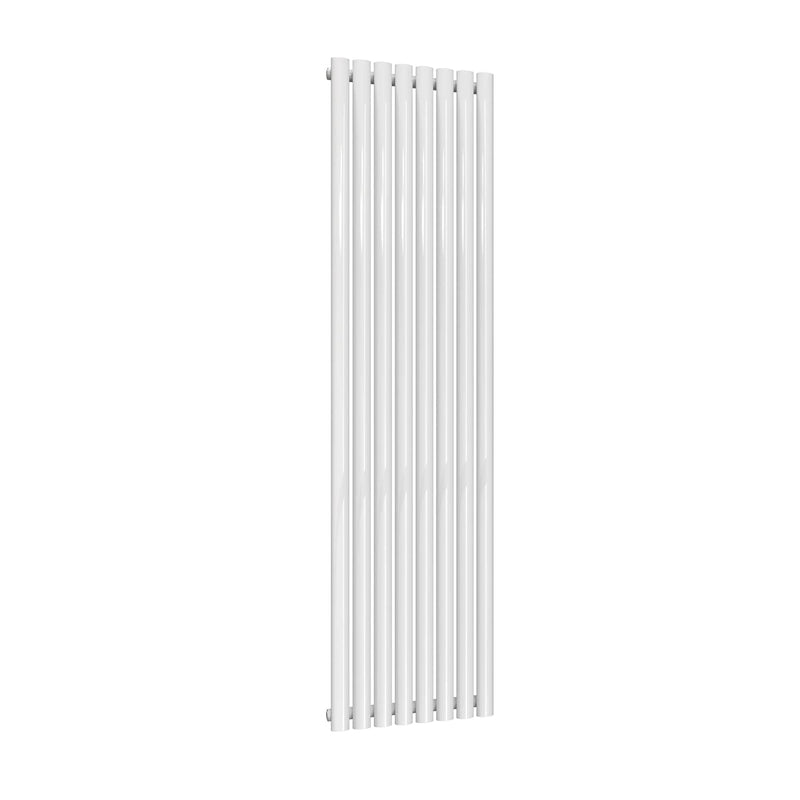

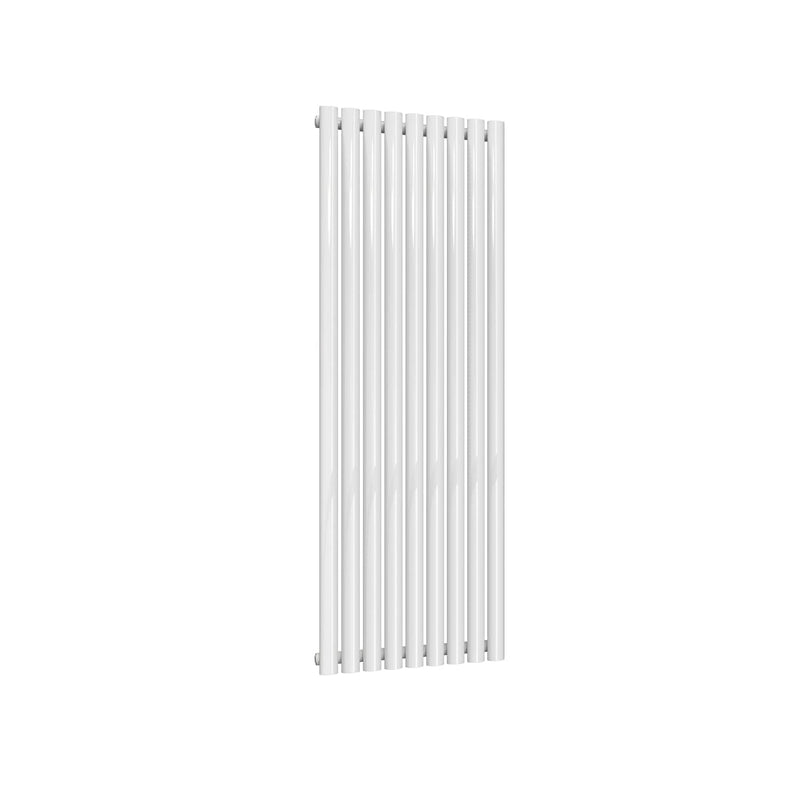

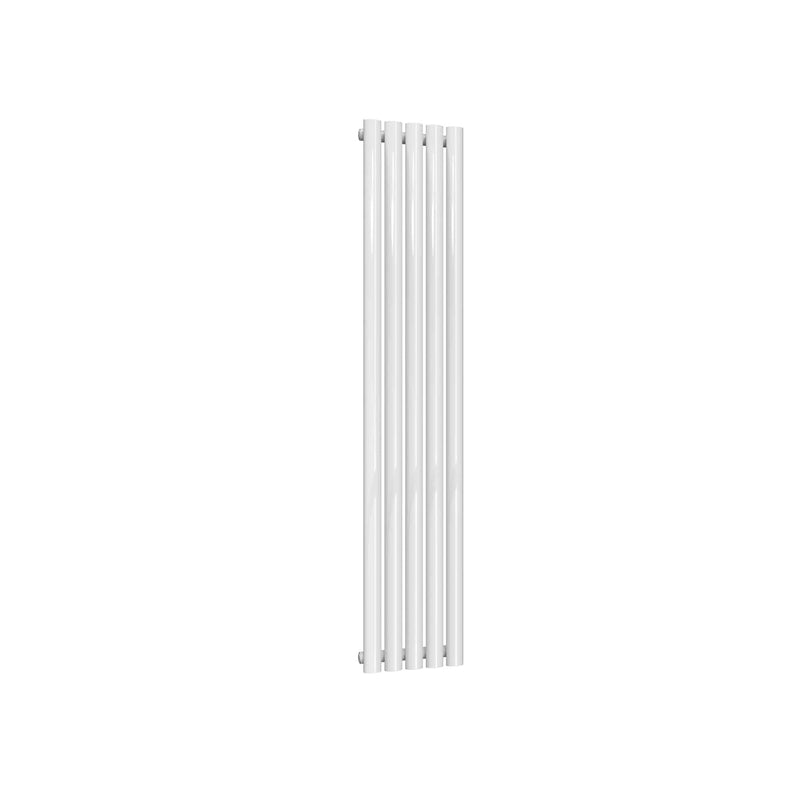

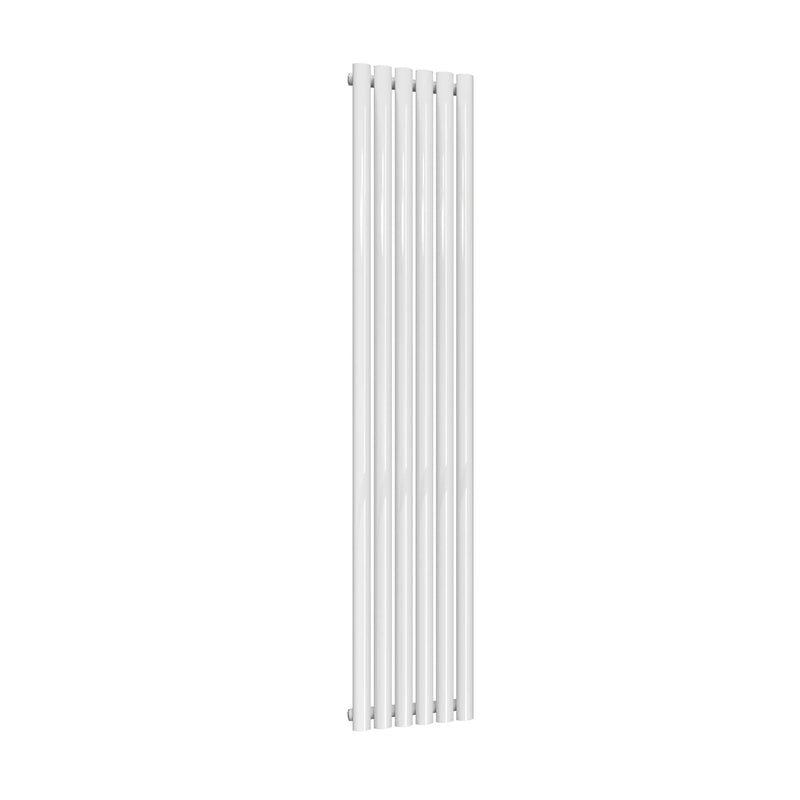

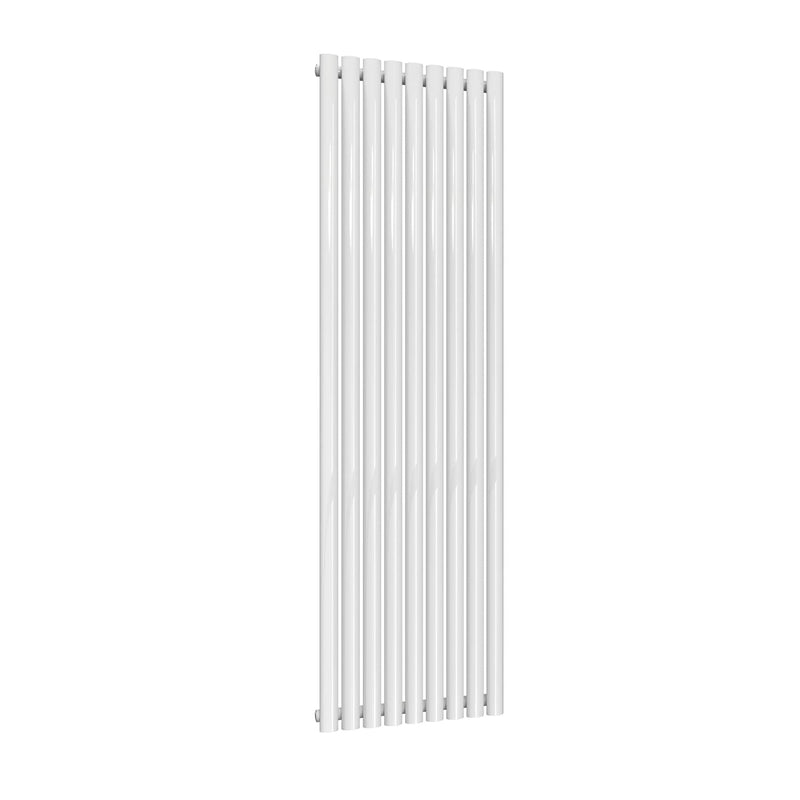

NEVA VERTICAL SINGLE
| Overall Height mm |
Dimension Width mm |
Pipe Centres mm |
Wall to Pipe Centres mm |
Wall Distance mm |
Fuel Type |
Heat Outputs ΔT 70°C |
|
| Btu | Watts | ||||||
| 1500 | 236 | 236 | 65 | 103 | C | 2265 | 664 |
| 1500 | 295 | 295 | 65 | 103 | C | 2816 | 826 |
| 1500 | 354 | 354 | 65 | 103 | C | 3380 | 991 |
| 1500 | 413 | 413 | 65 | 103 | C | 3944 | 1157 |
| 1500 | 472 | 472 | 65 | 103 | C | 4508 | 1322 |
| 1500 | 531 | 531 | 65 | 103 | C | 5070 | 1487 |
| 1800 | 236 | 236 | 65 | 103 | C | 2717 | 797 |
| 1800 | 295 | 295 | 65 | 103 | C | 3380 | 991 |
| 1800 | 354 | 354 | 65 | 103 | C | 4055 | 1189 |
| 1800 | 413 | 413 | 65 | 103 | C | 4732 | 1388 |
| 1800 | 472 | 472 | 65 | 103 | C | 5408 | 1586 |
| 1800 | 531 | 531 | 65 | 103 | C | 6884 | 2019 |

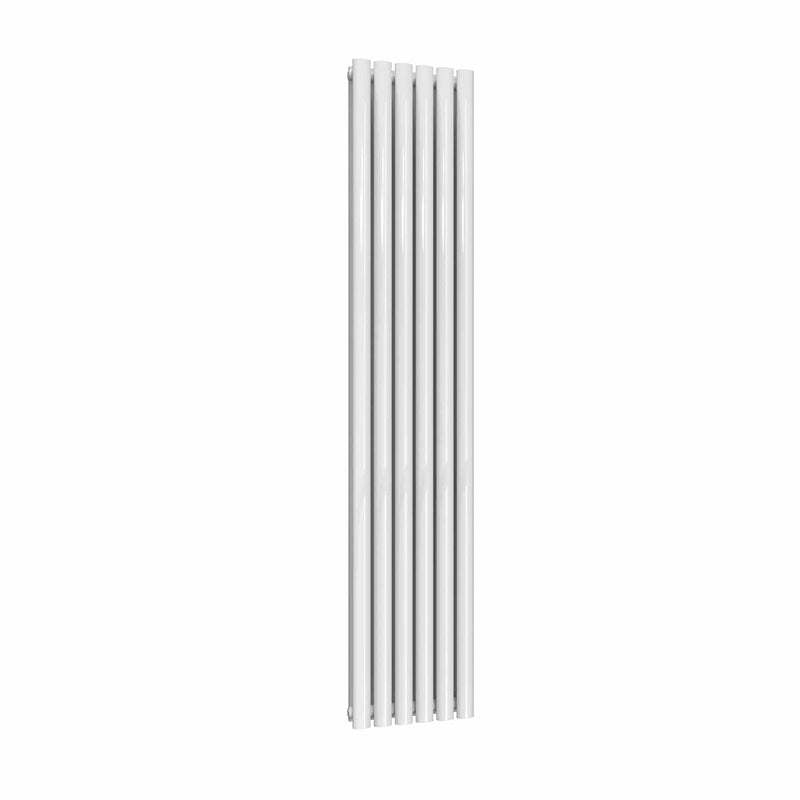

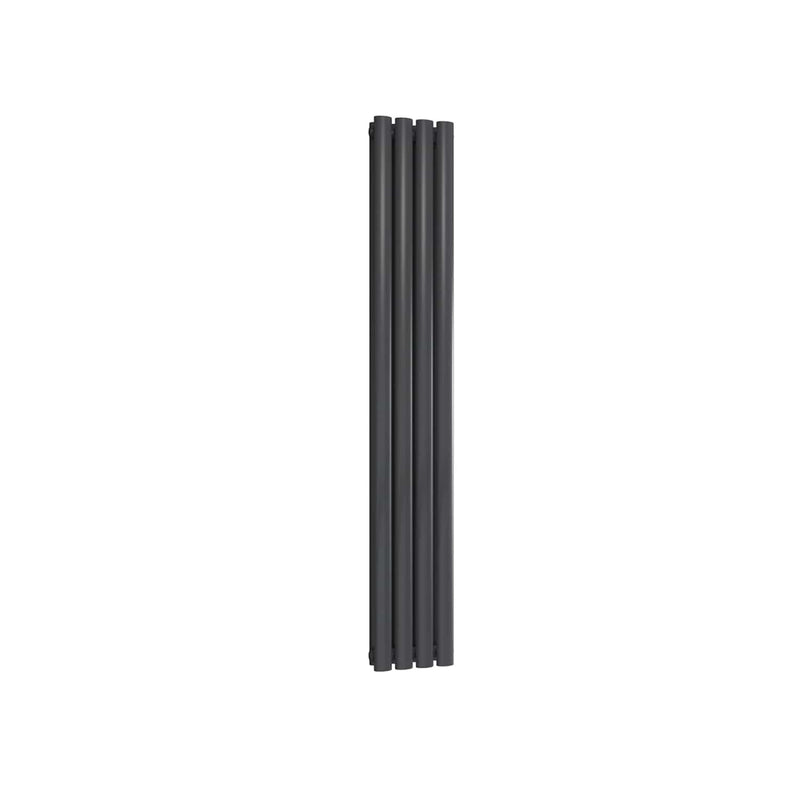

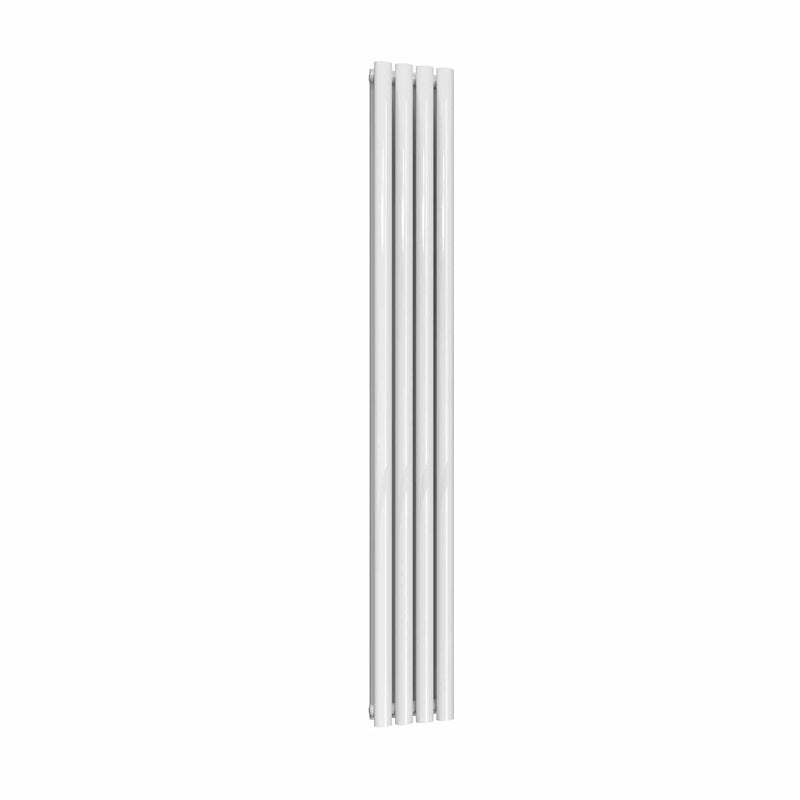

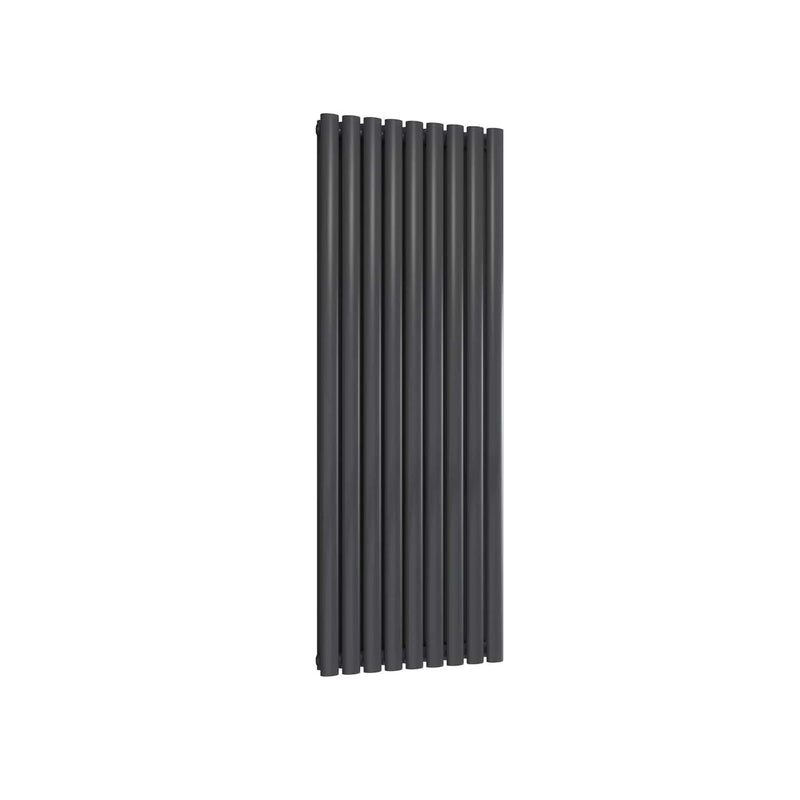

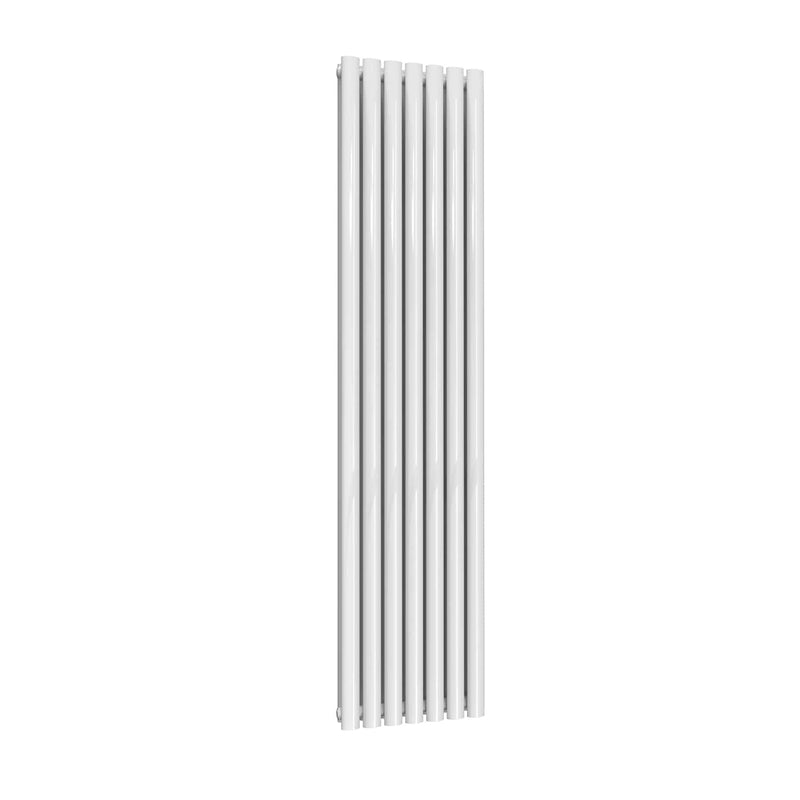

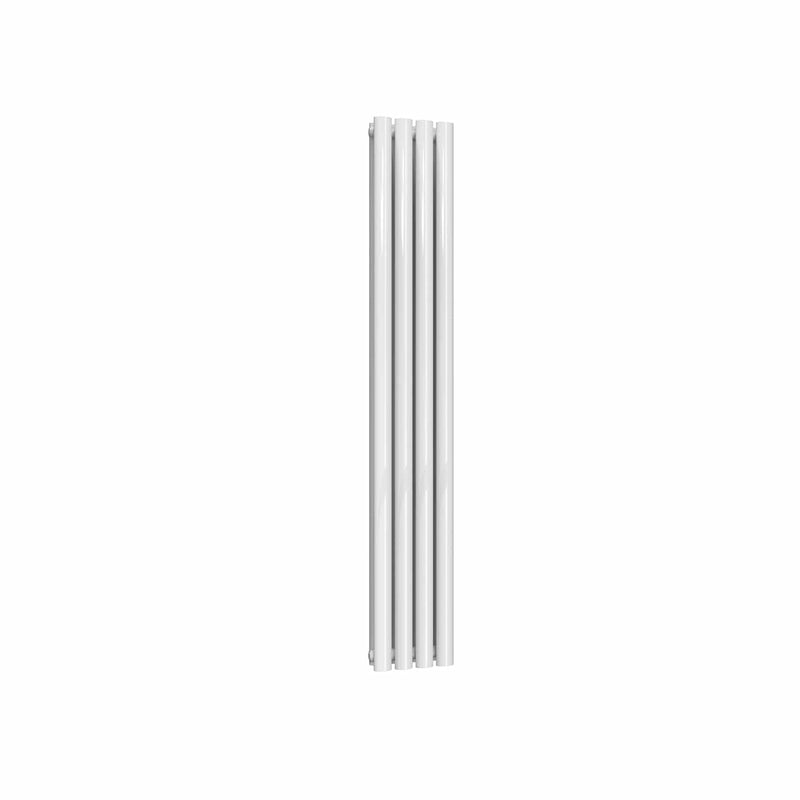

NEVA VERTICAL DOUBLE
| Overall Height mm |
Dimension Width mm |
Pipe Centres mm |
Wall to Pipe Centres mm |
Wall Distance mm |
Fuel Type |
Heat Outputs ΔT 70°C |
|
| Btu | Watts | ||||||
| 1500 | 236 | 236 | 65 | 103 | C | 3420 | 1003 |
| 1500 | 295 | 295 | 65 | 103 | C | 4252 | 1247 |
| 1500 | 354 | 354 | 65 | 103 | C | 5104 | 1497 |
| 1500 | 413 | 413 | 65 | 103 | C | 5955 | 1746 |
| 1500 | 472 | 472 | 65 | 103 | C | 6807 | 1996 |
| 1500 | 531 | 531 | 65 | 103 | C | 7656 | 2245 |
| 1800 | 236 | 236 | 65 | 103 | C | 4103 | 1203 |
| 1800 | 295 | 295 | 65 | 103 | C | 5104 | 1497 |
| 1800 | 354 | 354 | 65 | 103 | C | 6123 | 1796 |
| 1800 | 413 | 413 | 65 | 103 | C | 7145 | 2095 |
| 1800 | 472 | 472 | 65 | 103 | C | 8166 | 2395 |
| 1800 | 531 | 531 | 65 | 103 | C | 9187 | 2694 |
C: CENTRAL HEATING | E: ELECTRIC | D:DUAL FUEL
For pipe center measurement including valves add/subtract 90mm accordingly
| Watt Output | 1500W |
| Warranty | 5 Years |
| MPN / SKU | RND-NV2315W |
| Vendor | Reina |
| Product Type |
