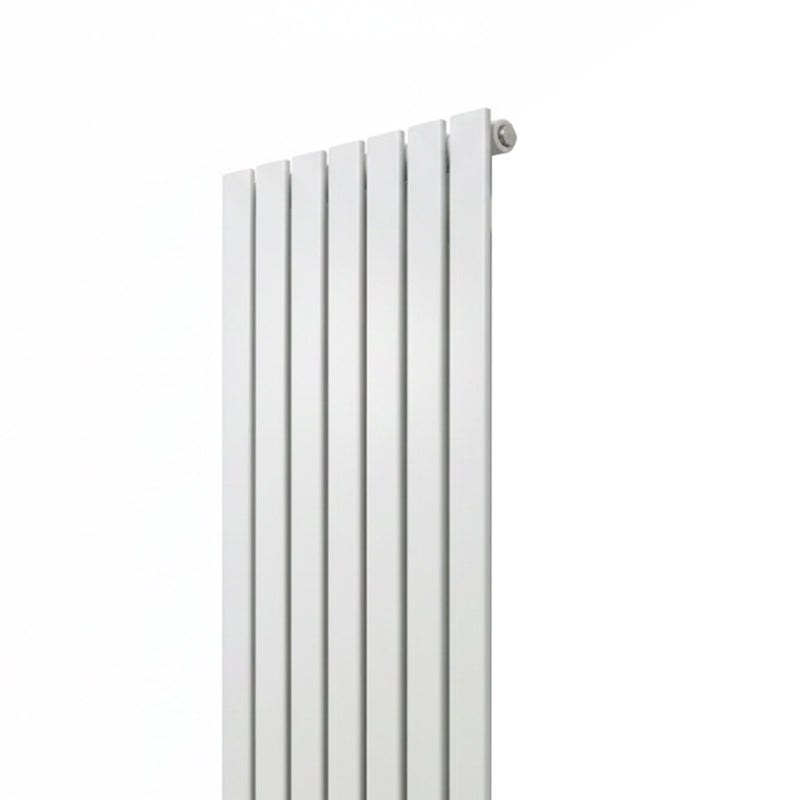

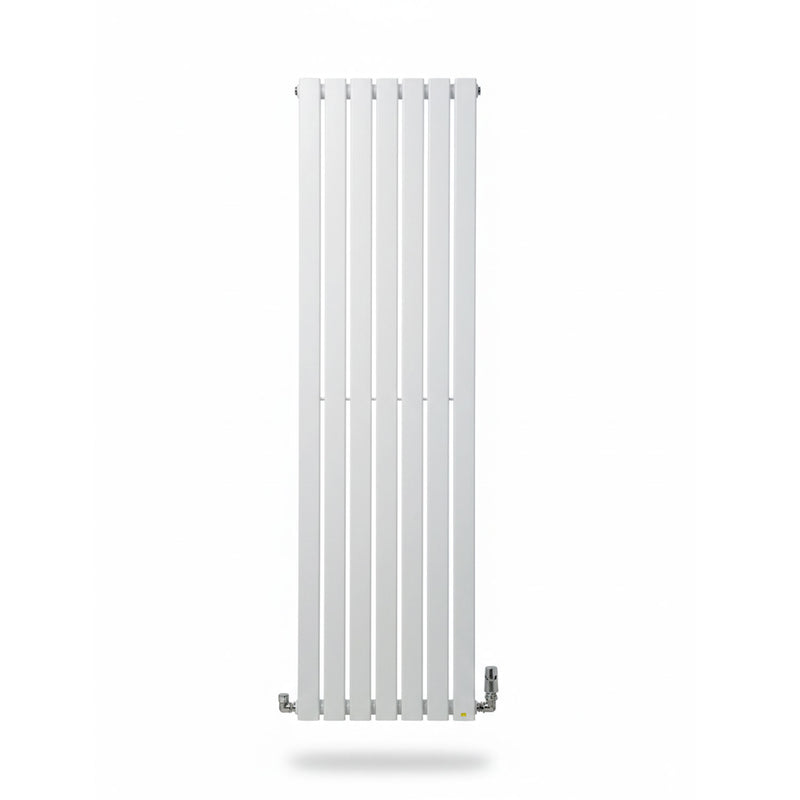

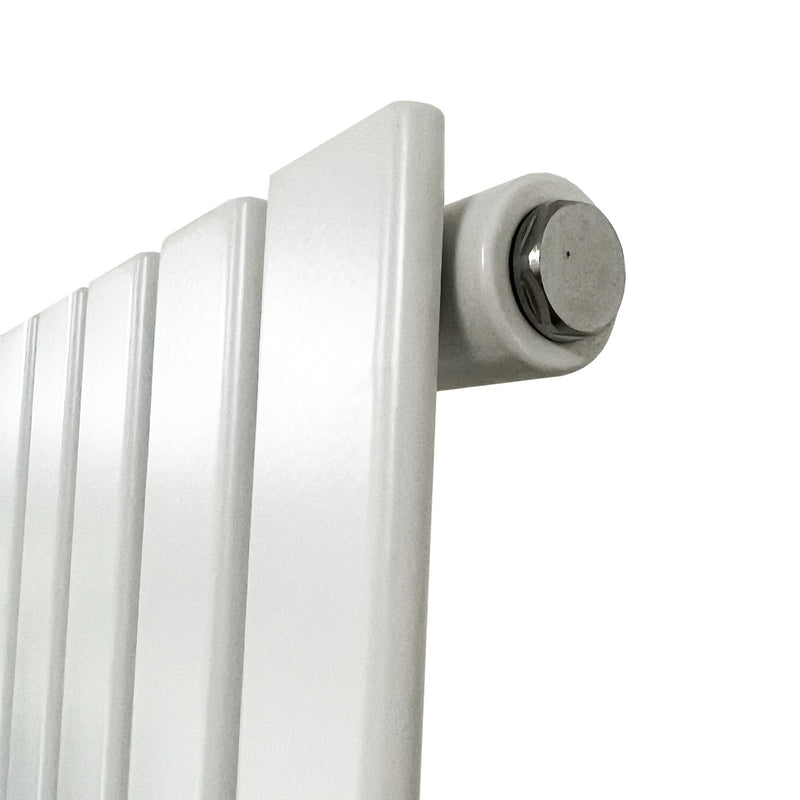

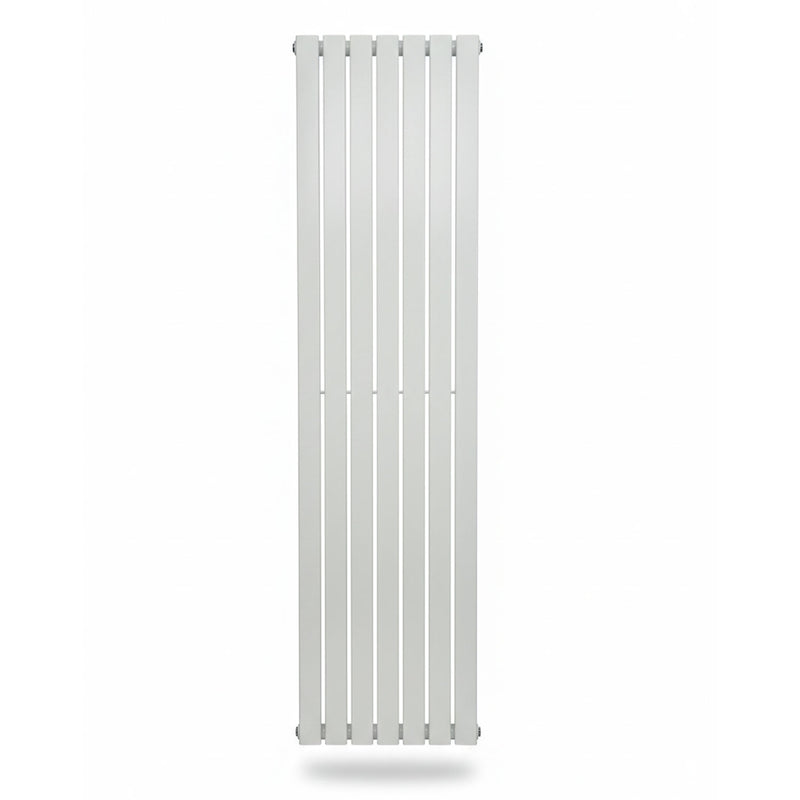

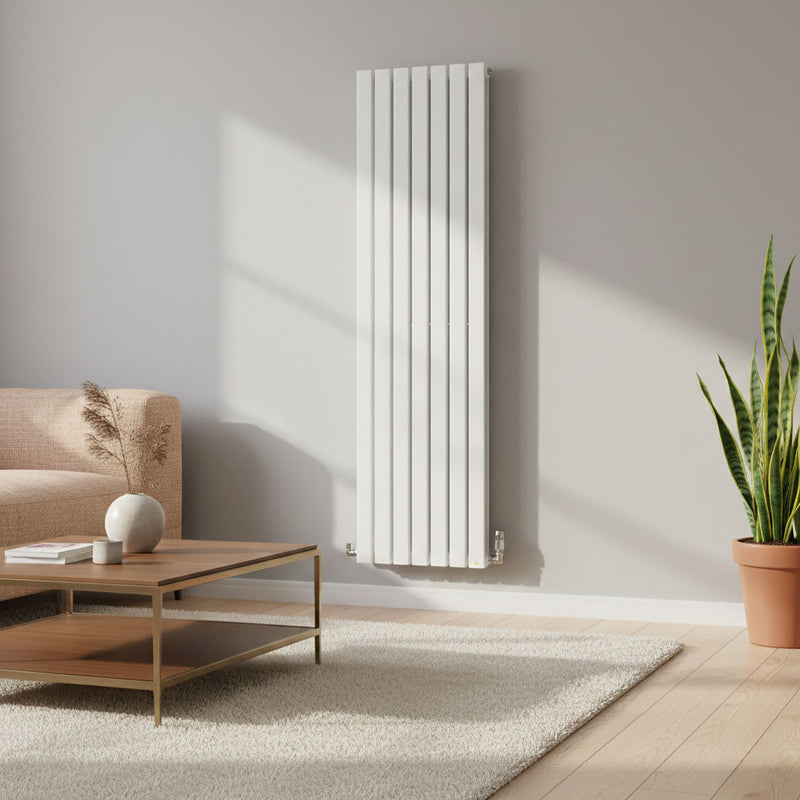

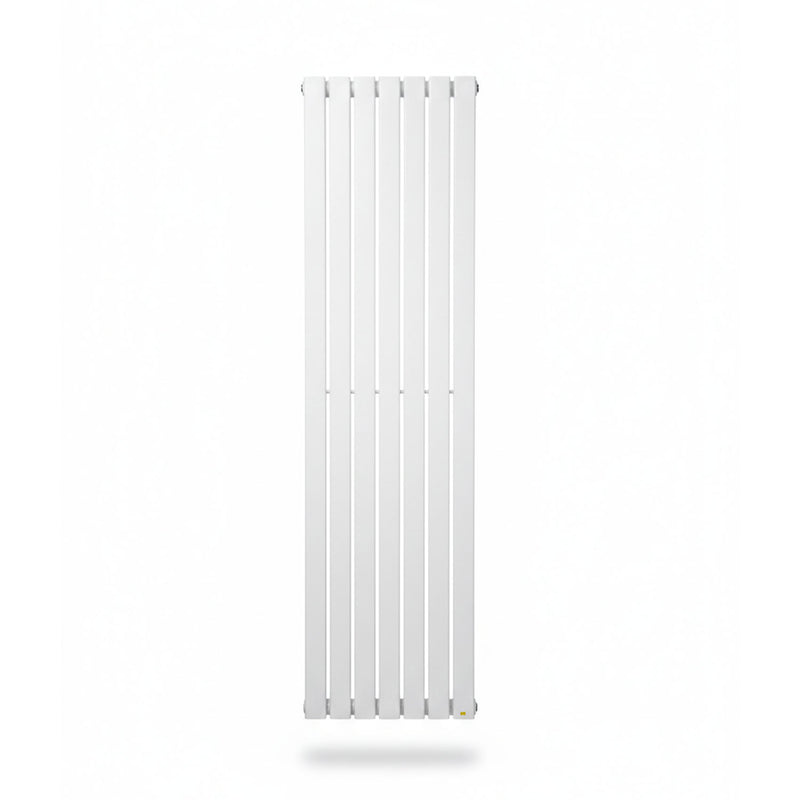

Elegant Flatty White Vertical Column Panel Radiator – Single/Double
Maximise your heating potential with this stylish white vertical column panel radiator that delivers exceptional style and dependable warmth. The commanding vertical layout makes a feature of your heating while freeing up valuable floor area. The smooth classic white finish brings a clean, bright look to living rooms, hallways, kitchens, or bathrooms. Choose a Single Panel for a slimmer projection or a Double Panel when you need maximum BTU output in larger or cooler rooms.
Why this model?
- Efficient heat, faster comfort: High surface area columns promote quick, even heat distribution.

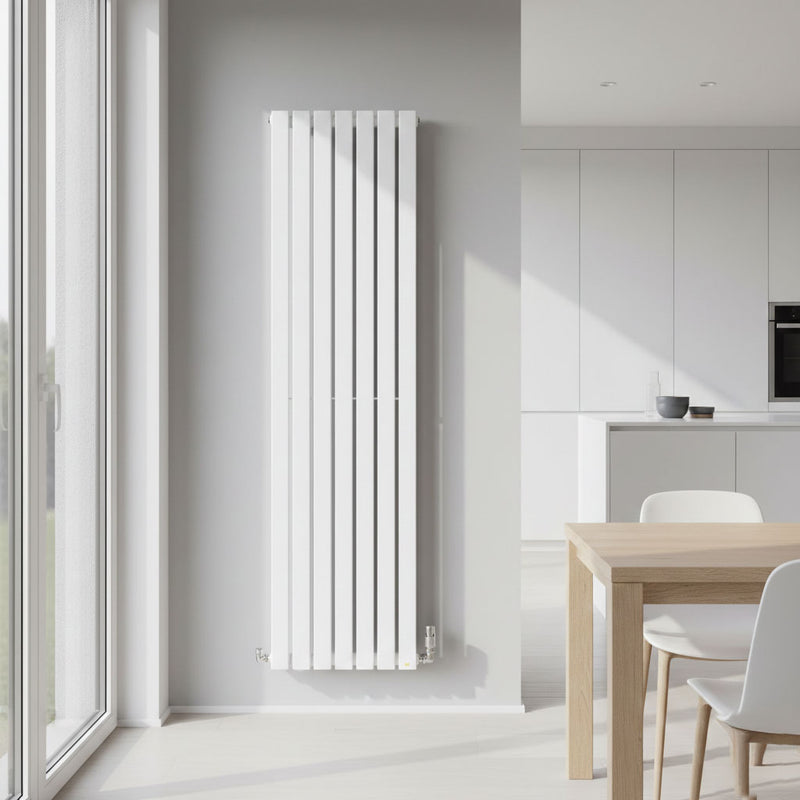

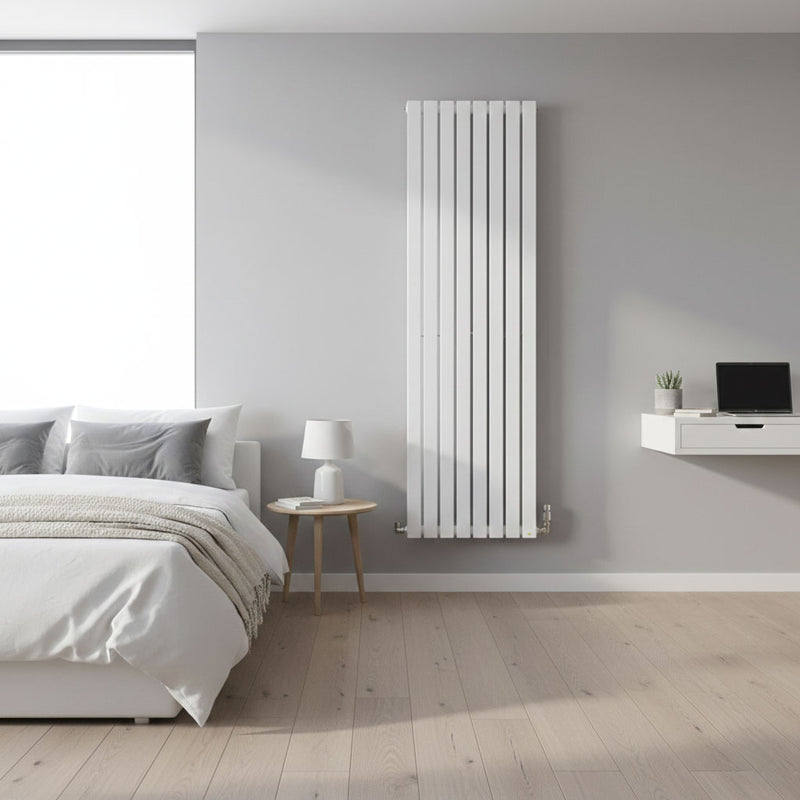

- Space-Saving Design: The tall, narrow footprint makes the most of small wall sections beside doors or windows, drawing the eye upwards.
- Built for everyday life: The durable, smooth white finish is easy to clean and maintains a fresh, bright appearance.
Single vs Double Panel
- Single Panel: A slimmer profile; ideal for compact rooms or when projection from the wall is a concern.
- Double Panel: Greater surface area provides a higher BTU output for open-plan living, rooms with high ceilings, or north-facing spaces.
Available Heights, Widths & Panel Options
| H (mm) | W (mm) | Type | Bars | Pipe Centres | Wall Pipe | Wall Distance | BTU | W |
|---|---|---|---|---|---|---|---|---|
| 1800 | 350 | Single | 5 | 350 mm | 50 mm | 79 mm | 2885 | 846 |
| 1800 | 420 | Single | 6 | 420 mm | 50 mm | 79 mm | 3462 | 1015 |
| 1800 | 490 | Single | 7 | 490 mm | 50 mm | 79 mm | 4038 | 1184 |
| 1800 | 560 | Single | 8 | 560 mm | 50 mm | 79 mm | 4617 | 1354 |
| 1800 | 630 | Single | 9 | 630 mm | 50 mm | 79 mm | 5193 | 1523 |
| 1800 | 350 | Double | 10 | 350 mm | 63 mm | 94 mm | 4445 | 1304 |
| 1800 | 420 | Double | 12 | 420 mm | 63 mm | 94 mm | 5335 | 1565 |
| 1800 | 490 | Double | 14 | 490 mm | 63 mm | 94 mm | 6223 | 1825 |
| 1800 | 560 | Double | 16 | 560 mm | 63 mm | 94 mm | 7113 | 2086 |
| 1800 | 630 | Double | 18 | 630 mm | 63 mm | 94 mm | 8001 | 2346 |
| 1600 | 420 | Single | 6 | 420 mm | 50 mm | 79 mm | 3126 | 917 |
| 1600 | 490 | Single | 7 | 490 mm | 50 mm | 79 mm | 3647 | 1070 |
| 1600 | 560 | Single | 8 | 560 mm | 50 mm | 79 mm | 4168 | 1222 |
| 1600 | 420 | Double | 12 | 420 mm | 63 mm | 94 mm | 4719 | 1384 |
| 1600 | 490 | Double | 14 | 490 mm | 63 mm | 94 mm | 5505 | 1614 |
| 1600 | 560 | Double | 16 | 560 mm | 63 mm | 94 mm | 6292 | 1845 |
Sizing & BTU Guidance
Always size your radiator by BTU requirement rather than physical dimensions. Use our BTU Calculator to estimate the ΔT50 BTU output needed based on room dimensions, insulation, and glazing. You can meet the total BTU requirement with one larger radiator or by combining multiple radiators in the same room.
What’s Included
- Wall brackets & fixings
- Blanking plug & bleed valve
- Installation guide

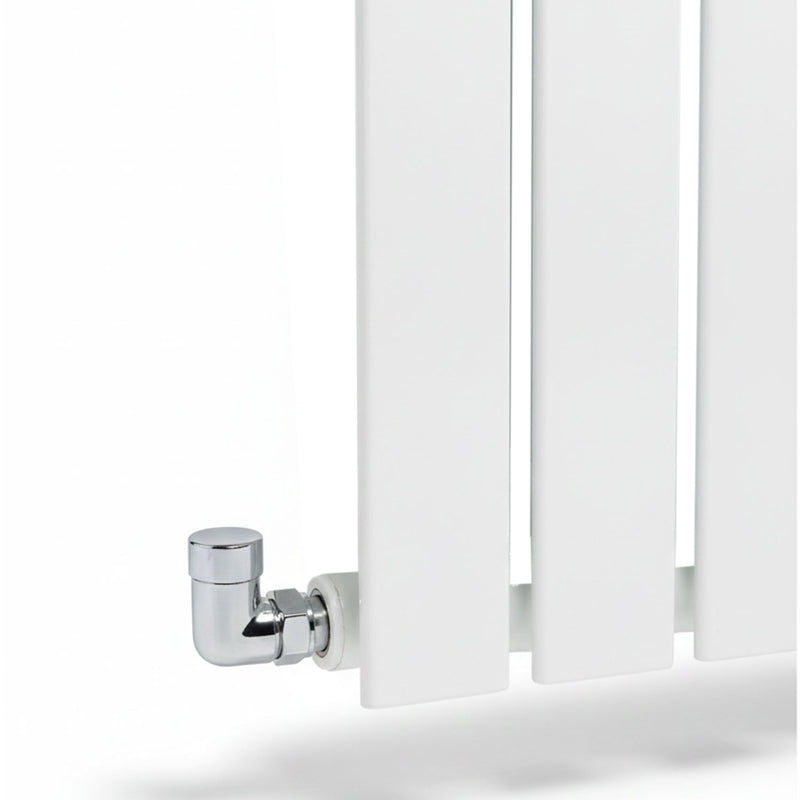

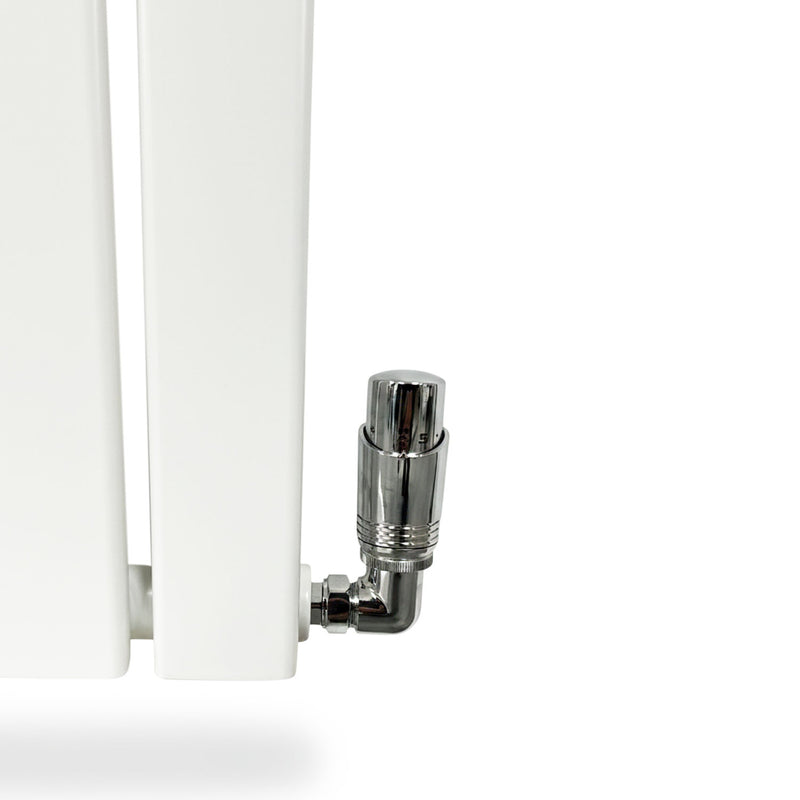

Valves not included. Pair with angled or straight valves to suit your pipework; a thermostatic (TRV) set is recommended for finer temperature control.
Quick Spec
| Orientation | Vertical |
| Finish | Classic White, smooth and easy-to-clean |
| Material | Low-carbon steel |
| Compliance | BS EN 442 |
| System Type | Closed-loop (water) central heating |
| Connections | Standard radiator valve connections |
| Warranty | 5 Years |
| Product Type | Panel Radiator |
| Panel Options | Single & Double Panel |
| Orientation | Vertical |
| Material | Steel |
| Finish | Anthracite (RAL 7016) |
| Available Heights | 1600 mm, 1800 mm |
| Available Widths | 300 mm – 600 mm |
| BTU Range (ΔT50) | 2,697 – 7,973 BTU/hr |
| Watt Range | 791 – 2,338W |
| Connection Type | Bottom connection |
| Thread Size | ½" BSP |
| Pipe Centres | 50 mm from wall |
| Working Pressure | 10 bar |
| Test Pressure | 13 bar |
| Heating System | Central Heating (Hot Water) |
| Standard | BS EN 442 Certified |
| Included | Wall brackets, fixings, blanking plug, bleed valve |
| Not Included | Radiator valves (sold separately) |
| Warranty | 5 Years |
| MPN / SKU | RV-HRV189SW |
| Brand | Elegant Radiators |
Customer Reviews
Fast UK Delivery
Order before noon for next working day delivery anywhere in the UK mainland.
5 Years Guarantee
Every product is backed by a manufacturer guarantee for complete peace of mind.
Expert Advice
Real heating specialists — not a call centre. WhatsApp us for instant help.
Trusted Since 2012
UK-based in Coventry with 14 years serving homeowners, plumbers & designers.
Powerful Heat, Sleek Design
Don't compromise on warmth for style. This radiator delivers serious heat output while looking stunning in any room — from living spaces to hallways and bedrooms.
Connected to your central heating system, it provides consistent, controllable warmth throughout the heating season with zero extra running costs.
Built to Last — 5 Years Guarantee
Every radiator is independently tested to BS EN 442 — the European standard for radiator heat output. The numbers we show are real, tested figures.
- Carbon Steel construction with quality welds
- Pressure tested: 13 bar test, 10 bar working pressure
- 5 Years guarantee — we stand behind every unit
- Compatible: All central heating systems, combi & system boilers
Everything You Need (Except Valves)
Each radiator arrives with all the wall mounting hardware. The only extra you'll need is a pair of radiator valves — we sell matching sets separately.
- Included: Wall brackets, fixings, blanking plug, bleed valve
- Included: Installation guide with dimensions
- You'll need: A pair of radiator valves (angled or corner)
- Installation: DIY-friendly for like-for-like swaps
Single vs Double Panel
Double panel radiators output roughly 60–80% more BTUs than single panel in the same dimensions. Choose double for larger rooms or if you want more heat from a smaller footprint. Single panels are slimmer and lighter.
- Single Panel: Slimmer profile (~50mm), lighter, ideal for smaller rooms or hallways
- Double Panel: Higher heat output (~60-80% more BTU), deeper (~100mm), best for living rooms and bedrooms
