Sale
Reina Designer Carpi Vertical Heated Towel Rail Steel Radiator
£152.00
£172.00
Save £20.00
Inc. VAT · Fast UK delivery
Estimated Delivery:
Free delivery over £200 — £9.99 below
30-day returns
Need Help Choosing?
Our heating experts are here to help
Mon-Fri 9am-5pm
★ Excellent service · Elegant Radiators · Coventry, UK
UK stock · Same-day dispatch before 12pm · 5-year guarantee
Central heating, electric or dual fuel. Mild steel. Chrome finish.
Product Overview & Key Specs
The Reina Carpi is a vertical ladder towel radiator in chrome-finished mild steel, combining flat horizontal bars with robust steel construction. Choose from six sizes between 800mm and 1300mm high, 300mm to 500mm wide, with 8 to 13 bars for towels. It suits central heating, electric or dual fuel, and has a 5-year Reina guarantee.
800–1300mm
Six sizes
300–500mm
Width
8–13
Bars
ΔT30
Heat pump rated
5 yr
Guarantee
View the Carpi in 3D & Augmented Reality
Rotate and inspect every angle. On mobile, scan the QR code to place it on your wall with AR.
Mobile AR View
Point your phone camera at this code to place the Carpi in your room using augmented reality.
Why a Ladder Towel Rail?
Three practical reasons the Carpi suits a bathroom or cloakroom.
Flat horizontal barsRoom for towels ✔
From 8 bars on the smallest size up to 13 bars on the largest, the Carpi gives a broad, flat surface to hang towels over.
5-year guaranteeMild steel build ✔
Reina back the Carpi with a 5-year guarantee, and its chrome finish matches chrome taps and bathroom fittings.
Choice of heat sourceCentral, electric or dual fuel ✔
Reina list the Carpi for central heating, electric and dual fuel, so it can follow your plumbing plans or run from an element.

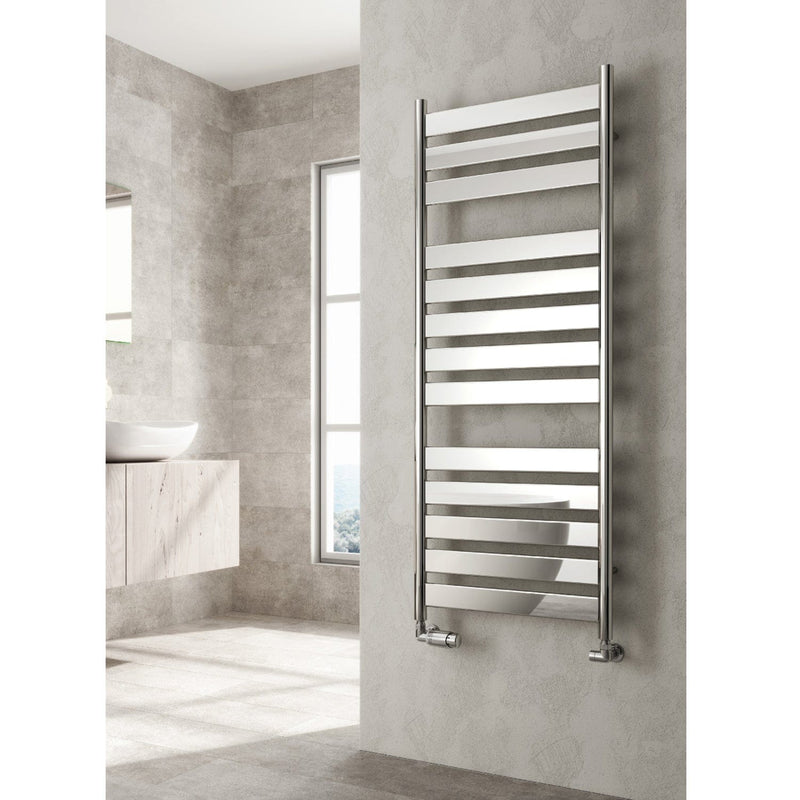

In the Room
The Carpi shown in a bathroom setting, plus two close-ups of the chrome finish.
Heat Output by Size & System
Calculated to EN 442. ΔT60 = high-temp boilers (80°C flow). ΔT50 = standard gas boiler (75/65°C). ΔT30 = heat pump (50/40°C).
| Size (HxW) | Bars | ΔT60 BTU High-temp |
ΔT50 BTU Gas boiler |
ΔT30 BTU Heat pump |
Watts ΔT50 |
Watts ΔT30 |
|---|---|---|---|---|---|---|
| 800x300mm | 8 bars | 939 | 734 | 380 | 215 | 111 |
| 1200x300mm | 12 bars | 1,360 | 1,063 | 550 | 312 | 161 |
| 800x400mm | 8 bars | 1,251 | 977 | 506 | 287 | 148 |
| 1200x400mm | 12 bars | 1,813 | 1,416 | 733 | 415 | 215 |
| 950x500mm | 9 bars | 1,564 | 1,222 | 633 | 358 | 185 |
| 1300x500mm | 13 bars | 2,387 | 1,865 | 965 | 547 | 283 |
Heat pump owners: use the ΔT30 column - it is the output at a 50/40°C system.
Technical Specifications & Dimensions
Fit-check before you buy
| Model | Reina Carpi |
| Height | 800 / 950 / 1200 / 1300mm |
| Width | 300 / 400 / 500mm |
| Distance from wall | 77–92mm |
| Pipe centres | 268mm (300mm wide) / 368mm (400mm wide) / 468mm (500mm wide) |
| Wall to pipe centres | 61–76mm |
| Material | Mild steel |
| Bars | 8–13 (by size) |
| Finish | Chrome |
| Fuel type | Central heating / electric / dual fuel |
| Included | Wall brackets, anchors, fixings, air vent and end plug |
| Not included | Radiator valves |
| Max working pressure | 4 bar |
| Max water temperature | 95°C |
| Heat pump compatible | Yes - rated at ΔT30 |
| Guarantee | 5 years (Reina manufacturer) |
800–1300mm
6 sizes · 300–500mm wide
Bars8–13
FinishChrome
✓
ΔT30 rated
Heat pump compatible
✓
C / E / D
Central, electric or dual fuel
Free deliveryorders over £200
In stockships today
30-dayreturns
Will This Radiator Heat My Room?
Enter your room dimensions and select your heating system.
Frequently Asked Questions
Q.
Is the Reina Carpi compatible with a heat pump?
A. Reina publish a Delta T30 output for every Carpi size, so it can be used on a heat pump system - use the Delta T30 column in our heat output table for accurate figures. Size the towel rail against that column rather than the gas boiler figures.
Q.
Can the Carpi be used as an electric or dual fuel towel rail?
A. Reina list the Carpi for central heating, electric and dual fuel. For electric or dual fuel use you need a compatible heating element, so please contact our team to confirm the right element kit for your size before ordering.
Q.
What valves do I need for the Carpi?
A. Radiator valves are not supplied with the Carpi, so you need a lockshield valve and a manual or thermostatic valve. Pipe centres are 268mm on the 300mm-wide sizes, 368mm on the 400mm-wide sizes and 468mm on the 500mm-wide sizes. Contact our team if you would like help choosing a pair that suits your pipework.
Q.
What are the pipe centres and wall distances on the Carpi?
A. Pipe centres follow the width: 268mm on 300mm-wide models, 368mm on 400mm-wide models and 468mm on 500mm-wide models. Wall to pipe centres is 61 to 76mm and the distance from the wall is 77 to 92mm on every size.
Q.
Which size Carpi do I need?
A. The Carpi comes in six sizes from 800 x 300mm up to 1300 x 500mm, all in chrome. Use the room fit calculator on this page to see which one meets your room's heat loss, or contact our team for advice on your room.
Q.
How many bars does the Carpi have?
A. Bar count runs from 8 on the smallest 800mm-high sizes up to 13 on the 1300 x 500mm size - see the heat output table above for the exact count on each size.
Q.
What is the maximum working temperature and pressure?
A. Reina's installation guide gives a maximum working temperature of 95 degrees C and a maximum working pressure of 4 bar. If you are unsure whether your system stays within those limits, ask your installer before ordering.
Q.
What is included in the box and who should fit it?
A. The Carpi comes with four wall brackets, four wall anchors, fixing screws, washers, security screws, an air vent and an end plug. Radiator valves are not included. Reina state it must be fitted by a fully qualified installer.
