Electric Towel Rail Digital Timer: Programmable Timerswitch
Smart Heated Towel Rail Timer Switch (CB-WCONT-TMR)
Experience the luxury of warm towels tailored to your schedule with our heated towel rail timer switch. Designed exclusively for Single Heat, ER-Touch Thermostatic, this timer switch offers both convenience and energy efficiency. With its user-friendly display and 7 day 24-hour programmable settings, your towels will be warm and ready every day, when you need it.
Key Features:
- Boost Function: Quick 1 or 2-hour heat-up for those chilly mornings.
- Override & Auto-Adjust: Features an override facility and auto-adjustment for seasonal changes.
- Safety Assured: CE Certified for EU and UKCA, with double-pole isolation and a replaceable 13 Ampere cartridge fuse.
- Versatile Applications: Ideal for a range of lighting types and resistive loads up to 3kW.
- Specifications: Compact design (85 x 85 x 24.5) with detailed tech specs for those who love details.
Note: Not suitable for discharge lighting.
Heated Towel Rail Timer Switch Features
- Switched fused spur with programmable timer with display,
- 1 or 2-hour boost function, override facility.
- Summer/winter time auto-adjustment.
- CE & UKCA Certified,
- 7 Day fused spur timer
- Patress box mounting fit
- Double-pole isolation
- Fits a 25mm back box
- Internally-linked mains switching
- 200 Hour-running reserve
MUST BE INSTALLED BY QUALIFIED ELECTRICIAN!
The CB-WCONT-TMR is a Heated Towel Radiator Timer Switch. The timer is suitable for patress box mounting. The 7-day 24 hours programming logic controls a mains-linked switch, with a resistive rating of 13 amperes. There is an inbuilt re-chargeable cell to keep the timer running in the event of a loss of mains power.
The output can be disconnected by an integrated double-pole isolator switch; the load is protected by a replaceable BS1362 13 Ampere cartridge fuse, within a removable caddy.
We also have a WiFi Connected Electric Towel Radiator Timer with a Fused Spur built in.

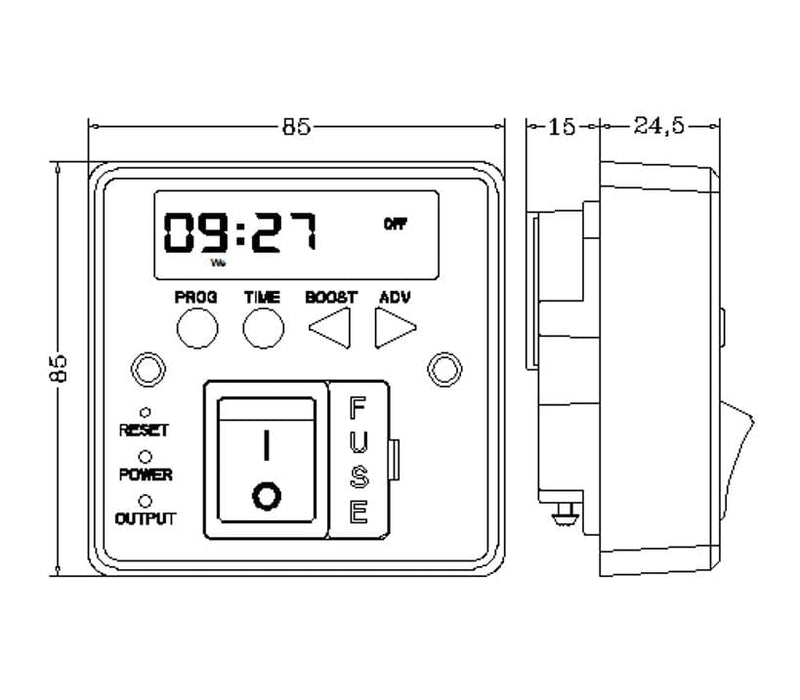

- Dimensions: 85 x 85 x 24.5 (see drawing below)

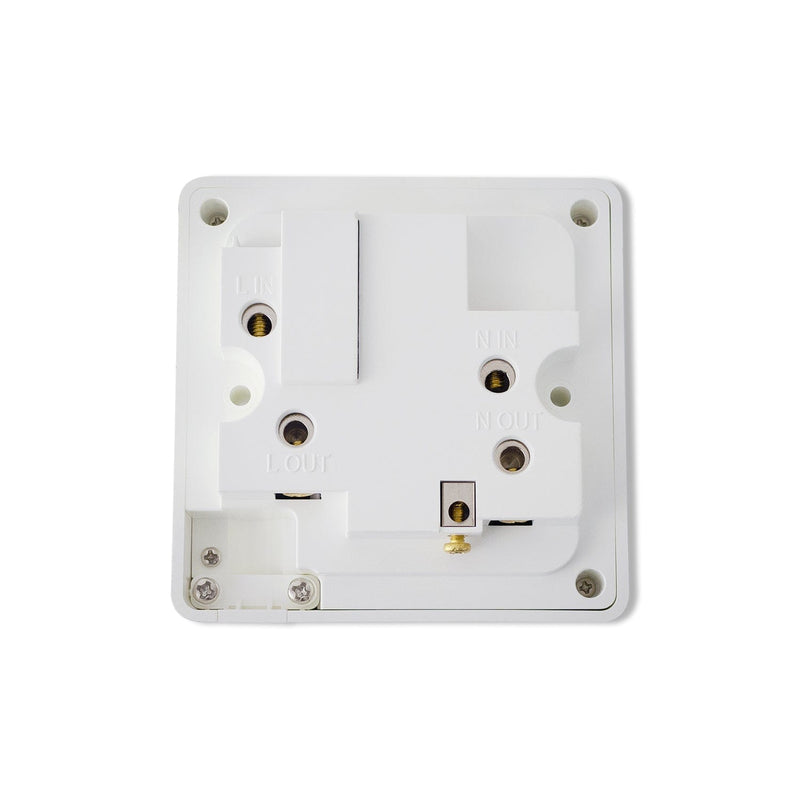

- Connections: 4 x wire-protect screw terminals
- Weight: 150g
- Power consumption: 1VA @ 230v 50hz
- Resistive load: 13 Amperes
- Inductive load: 2 Amperes (cos ø 0.6)
- Minimum load: 100mA @ 20v ac/dc
- Running reserve: 200 Hours
- Temperature rating: -20T55
- Accuracy quartz regulated: (typically /- 2.5 sec/day)
- Minimum switching period: 1 minute
- Program capacity: 7 Days, 5 Days (Weekday only), 2 Days (Weekend only), Individual times per day. (Up to 4 x ON/OFF switch timings per day)
- Manual override: Yes
Suitable for use with:
- Resistive loads (3kW max) - such as Immersion Heaters
- Incandescent / Halogen Lighting (700W max)
- Fluorescent Lighting (500W max)
- CFL Compact Fluorescent Lighting (80W max)
- LED Lighting (150W max)
- Not suitable for use with discharge lighting
FAQ
Can I Install an Electric Towel Rail Timer on My Existing Towel Rail?
Absolutely, you can add a timer to your existing electric towel rail. Think of it as akin to adding a kitchen timer to your oven. Compatibility between your timer and towel rail is essential for seamless operation.
How to Check Compatibility?
- Turn on your towel rail.
- Find the fuse switch and turn it off, then back on after 10-15 seconds.
- If the towel rail picks up the heating from where it left off, you're good to go!
This setup allows you to use an external timer for precise control over your towel's warmth, akin to setting a timer for baking a cake. It not only gives you control but can also contribute to energy efficiency and convenience.
What if there is a power cut?
There is a battery included inside the timer and it will remember the program settings for up to 4 weeksThis setup allows you to use an external timer for precise control over your towel's warmth, akin to setting a timer for baking a cake. It not only gives you control but can also contribute to energy efficiency and convenience.
Are Electric Towel Rail Timers Safe for Bathroom Use?
For safety purposes, it's typically recommended to have timer switches and other electrical components installed outside the bathroom. Nonetheless, always consult with a professional electrician to determine the best setup for your specific bathroom design and layout. They will ensure everything is done to maintain the highest safety standards, especially if you're unfamiliar with electrical systems.
If you can't find your answer, please CONTACT US.
| Finish | White |
| Warranty | 5 Years |
| MPN / SKU | CB-WCONT-TMR |
| Vendor | Elegant Radiators |
| Product Type | wall controller |
